001348 – Gear (Includes item 2 – Set Screw) -Non Current
Call for pricePart Number: 001348
Description: Gear (Includes item 2 – Set Screw) -Non Current

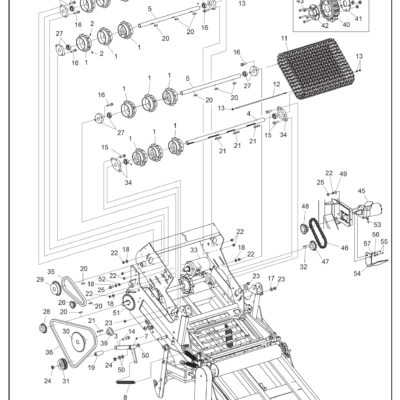

Diagram Reference Number: 1
Showing 1–24 of 51 results
-
-
001375 – Idler Arm. Roll-up Drive
Call for pricePart Number: 001375
Description: Idler Arm. Roll-up Drive
Diagram Reference Number: 3 -
001465 – Conector – 18 in Mintex – 24 in
Call for pricePart Number: 001465
Description: Conector – 18 in Mintex – 24 in
Diagram Reference Number: 12 -
016720 – Shaft. Idler – 24 in.
Call for pricePart Number: 016720
Description: Shaft. Idler – 24 in.
Diagram Reference Number: 5 -
-
4129654 – Shaft. Vertical Drive- 24 in.
Call for pricePart Number: 4129654
Description: Shaft. Vertical Drive- 24 in.
Diagram Reference Number: 9 -
4134808 – Mintex Belt 18 in. (Includes items 12 & 13) – 24 in.
Call for pricePart Number: 4134808
Description: Mintex Belt 18 in. (Includes items 12 & 13) – 24 in.
Diagram Reference Number: 10 -
4134809 – Mintex Belt 18 in. (includes items 12 & 13) – 24 in.
Call for pricePart Number: 4134809
Description: Mintex Belt 18 in. (includes items 12 & 13) – 24 in.
Diagram Reference Number: 11 -
55-FB23016 – Bearing – 2 Bolt Flange
Call for pricePart Number: 55-FB23016
Description: Bearing – 2 Bolt Flange
Diagram Reference Number: 34 -
81-056 – Link. Connector #40
Call for pricePart Number: 81-056
Description: Link. Connector #40
Diagram Reference Number: 37 -
81-076 – Half Link #40
Call for pricePart Number: 81-076
Description: Half Link #40
Diagram Reference Number: 38 -
83-P116 – Bushing
Call for pricePart Number: 83-P116
Description: Bushing
Diagram Reference Number: 39 -
B0121 – Bearing – 2 Bolt Flange
Call for pricePart Number: B0121
Description: Bearing – 2 Bolt Flange
Diagram Reference Number: 27 -
D2902 – Belt Idler Sheave
Call for pricePart Number: D2902
Description: Belt Idler Sheave
Diagram Reference Number: 31 -
F040416 – Bolt 1/4 unc x 1 3/4 Gr.8
Call for pricePart Number: F040416
Description: Bolt 1/4 unc x 1 3/4 Gr.8
Diagram Reference Number: 43 -
F040604 – Bolt 3/8 unc x 1/2 Wlf
Call for pricePart Number: F040604
Description: Bolt 3/8 unc x 1/2 Wlf
Diagram Reference Number: 16 -
F040610 – Bolt 3/8 unc x 1 Gr.8
Call for pricePart Number: F040610
Description: Bolt 3/8 unc x 1 Ge.8
Diagram Reference Number: 25 -
F040714 – BOLT- 7/16 UNC X 1 1/2 GR 8
Call for pricePart Number: F040714
Description: Bolt 7/16 unc x 1 /2 Gr.8
Diagram Reference Number: 15 -
F040822 – BOLT- 1/2 UNC X 2 1/4 GR 8
Call for pricePart Number: F040822
Description: Bolt 1/2 unc x 2 1/4 Gr.8
Diagram Reference Number: 14 -
F140503 – Set Screw 5/16 x 3/8
Call for pricePart Number: F140503
Description: Set Screw 5/16 x 3/8
Diagram Reference Number: 2 -
F210400 – Nyloc Nut 1/4-20 unc – Current from Serial No. 310
Call for pricePart Number: F210400
Description: Nut 1/4 unc Nyloc
Diagram Reference Number: 44 -
F210608 – NUT- 3/8 UNC NYLOC GR 8
Call for pricePart Number: F210608
Description: Locknut 3/8 unc
Diagram Reference Number: 22 -
F210707 – Locknut 7/16 unc
Call for pricePart Number: F210707
Description: Locknut 7/16 unc
Diagram Reference Number: 23 -
F230200 – Nut #10-24 unc
Call for pricePart Number: F230200
Description: Nut #10-24 unc
Diagram Reference Number: 13
